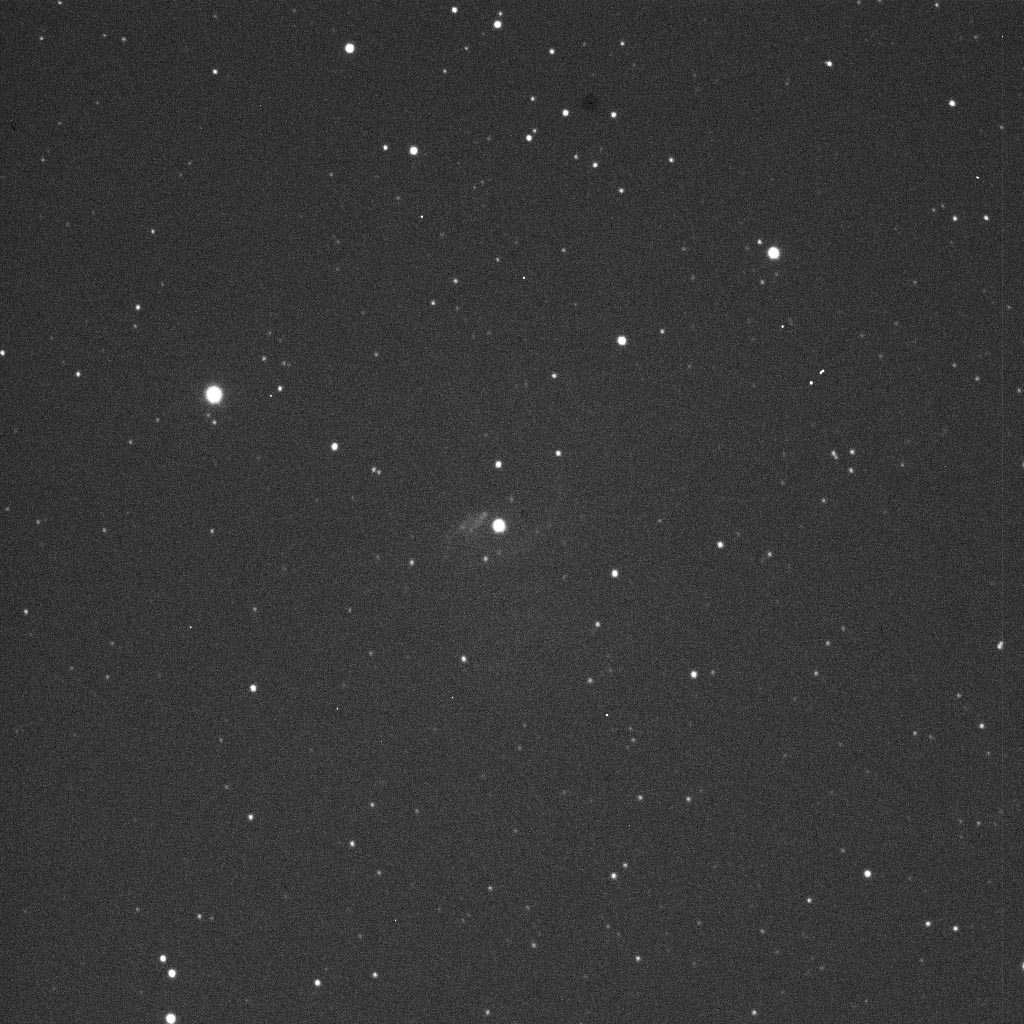

C14 illumination of a 1" x 1" TK1024 Sensor

Click on image to enlarge


This is a two second unguided exposure of a TK1024 sensor through a C14 with an RCOS Dichroic Beam Splitter supplying the light to the TK1024 sensor. This is useful to gauge the level of aberrations in the optical path.

To see the optical path in the DBS, follow this link
