M17 Swan Nebula imaged in [SII], Ha and [OIII] emission line filters

Click on image to enlarge

[SII] = Red, Hydrogen Alpha = Green, [OIII] = Blue

click on image to enlarge

Stars enhanced by using NIR filtered image for Luminance data


Hubble image of star forming region

Click image to travel to Hubble site for explanation of image

click on image to enlarge

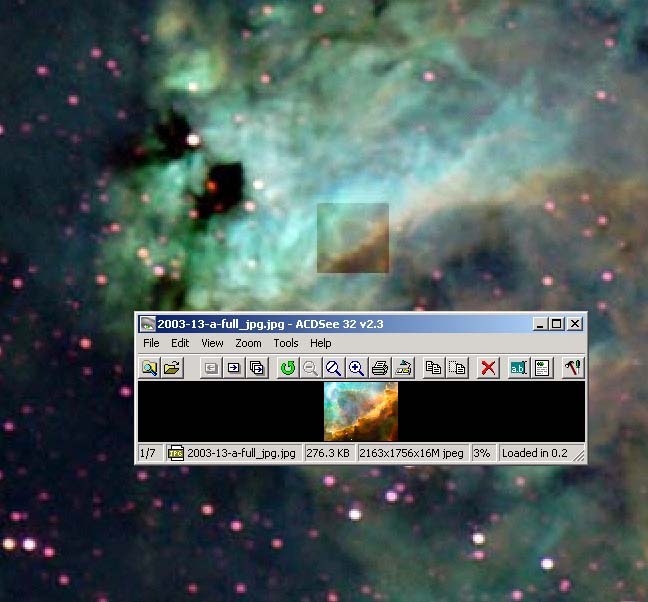

Portion of my image enhanced to show region of Hubble shot

The resolution of Hubble shot is simply amazing.

My shot was taken  on July 4, 2003 from my backyard in Castro Valley, Ca.

Astro-Physics Starfire 102 f/8 imaging scope (F=812mm)

SBIG ST10XME Imaging camera @-22C

Astro-Physics 80mm Guidescope (F=900mm)

SBIG ST7E guide camera @-15C

Finger Lakes Instrumentation CFW-1 Filter wheel

Custom Scientific Narrowband Emission line filters:

    Hydrogen Alpha      656.3nm /3nm passband

    [Sulfur II]                    673.4nm/3nm passband

    [Oxygen III]                500.7nm/3nm passband

BW Optic 49mm type 93 Near IR pass filter (850nm cutoff)

Optec TCF-S robotic focuser

Maxim DL 3.10 used for image capture, processing

Sigma Beta 10 used for combining darks, biases, lights

Three shots of 20 minutes each through each filter type.

[SII] assigned to Red

Ha assigned to Green

[OIII] assigned to Blue
